Category: Industrial, Foam Fire Fighting Vehicle
Model: AIS 15'000
Chassis: RENAULT K 440.34 6x4 - 436 Hp - Manual gearbox 14 speeds + 2 reverse.
Cabin: 2 doors, 3 seats. Passenger seats with SCBA holders integrated into the backrest.
Foam tanks: The vehicle is provided with nos.2 independent foam tanks: n.1 of 6'000 lt. + n.1 of 9'000 lt. capacity. They're of semielliptic section shape, completely housed and contained within the bodyframe, made by stainless steel AISI 316L, 4mm thickness. They're suitable to stock two different type of foam.
Water pump: CHINETTI 2T-100/100 - 10'000 lpm @ 10 bar. Bronze body and impeller, stainless steel shaft, suitable for sea water. It is provided with a dedicated solenoid clutch allowing pump engagement from cabin and rear control panel.
Roof Monitor: CHINETTI MCO5/DF - Dual flow 7'000 / 3'500 lpm @ 10 bar - Throw > 85 m - Rotation 360° - Remote controlled from cabin control panel, rear control panel and wireless control unit. Nos.2 LED spot lights mounted on the branchpipe. It is provided with a camera for easy operation from the cabin control panel. Manual override from the top roof.
Foam mixing system: automatic, balanced pressure type with individual foam injection in each single outlet - CHINETTI. It is able to work with both tanks, selection of the tank to be used can be easily done at the control panel, with a single button operation.
Foam pumps: 2x CHINETTI PSCH 600 - 600 l/min @ 18 bar - Bronze - Rotary gears type. They can operate simultaneously or independently. Engagement from cabin and rear control panel. They can even operate when water pump is not running.
Bodywork: Steel framework with light alloy panelling - Two lockers for equipment on each side with anodized roller shutters - Scene lights at sides and at the rear - nos.02 LED long range search light on each side, on the top roof.
Others:
- Reverse Camera
- Automatic Pressure governor system for pump pressure
- Water and foam flowmeter on the rear control panel.
Equipment: on request.
Ref #: 6996

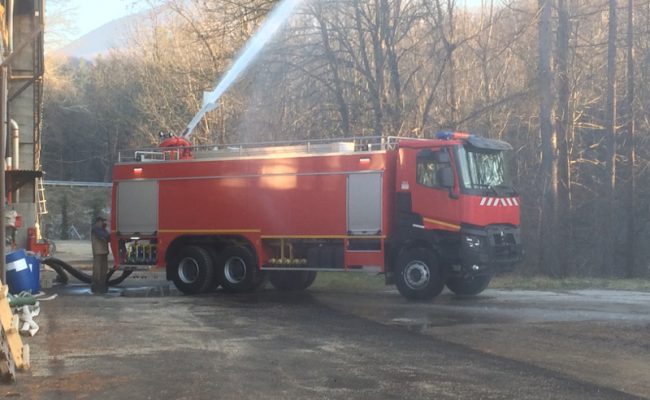

Monitor discharge test video: https://youtu.be/Q40g18rfmKA
