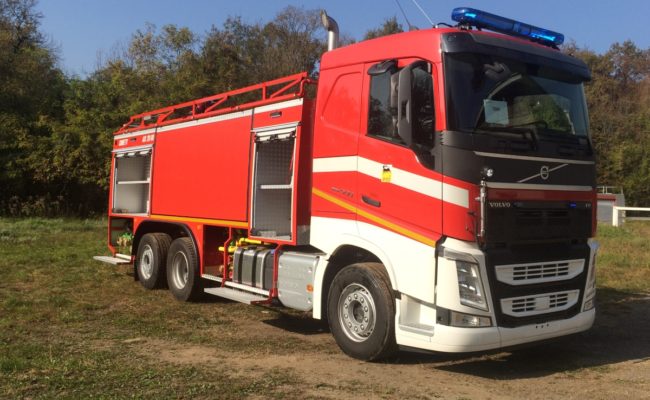

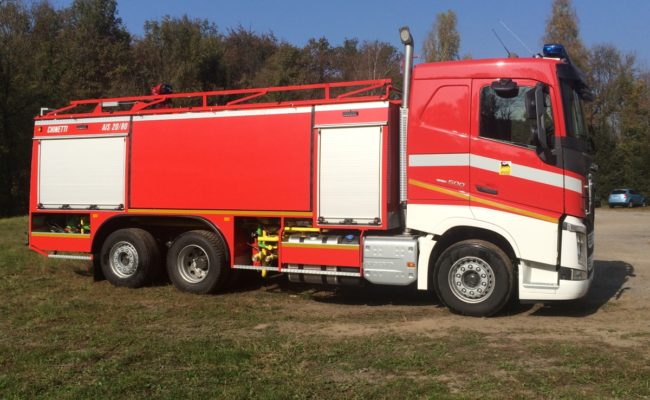

AIS 2000/8000

Category: Industrial - Water and Foam Fire Fighting Vehicle

Model: AIS 2000/8000

Chassis: Volvo FH500 6x2 - 500 Hp Euro 6 - Automatic gearbox - rear pneumatic suspension - Rear axle steering and liftable.

Cabin: 2 doors - 2 seats - SCBA holder integrated into the seat backrest.

Water tank: 2'o00 lt - Polypropylene (AISI 316L or GRP option available on request)

Foam tank: 8'o00 lt - Polypropylene (AISI 316L or GRP option available on request)

Water pump: Waterous CRU-1 - 11'000 lpm  @ 13 bar

Foam pump: ALBANY AP13 - 800 lpm @ 18 bar.

Monitor: Akron StreamMaster II - 7'600 lpm @ 5.5 bar - Remote controlled from cabin control panel, pump control panel and wireless portable control unit.

Foam mixing system: CHINETTI -  Balanced pressure type with foam injection on each delivery and individual foam mixing ratio control for each outlet, from 0 to 6% - It can work indipendently using water for open source or from hydrants.

Bodywork: Stainless steel frame with anodized light alloy panelling - Nos.2 lockers on each side for equipment storage - side retractable foosteps.

Light mast: Telescopic - 2 x 10W LED lights power supplied from chassis 24Vcc electric system or from auxiliary generator - max height from ground: 6m. (Optional)

Other Features:

  • Reverse camera
  • Automatic Emergency Engine Shut-down system
  • Built-in battery charger c/w self-ejecting socket for 230V connection.

Ref #: 7089
