AIS 20/80/WT20

Category: Industrial - Water and Foam Fire Fighting Vehicle

Model: AIS 20/80/WT20

Chassis: Volvo FH540 8x2 - 540 Hp Euro 6 - Automatic gearbox - rear pneumatic suspension - 2 front axles and last rear axle steering.

Cabin: 2 doors - 2 seats - SCBA holder integrated into the seat backrest.

Water tank: 2'o00 lt - Polypropylene

Foam tank: 8'o00 lt - Polypropylene

Water pump: 11'000 lpm  @ 13 bar

Foam pump: ALBANY AP13 - 800 lpm @ 18 bar.

Monitor: Akron StreamMaster II - 7'600 lpm @ 5.5 bar

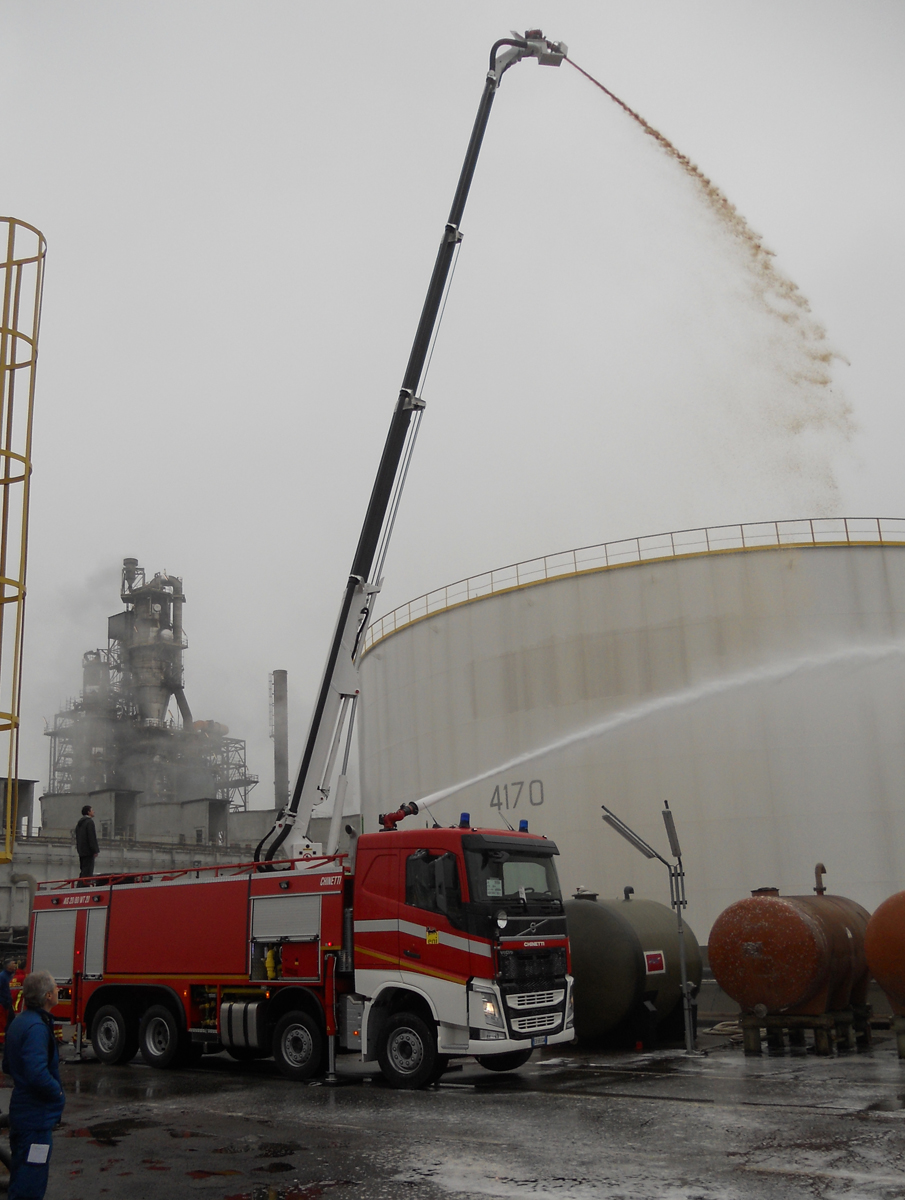

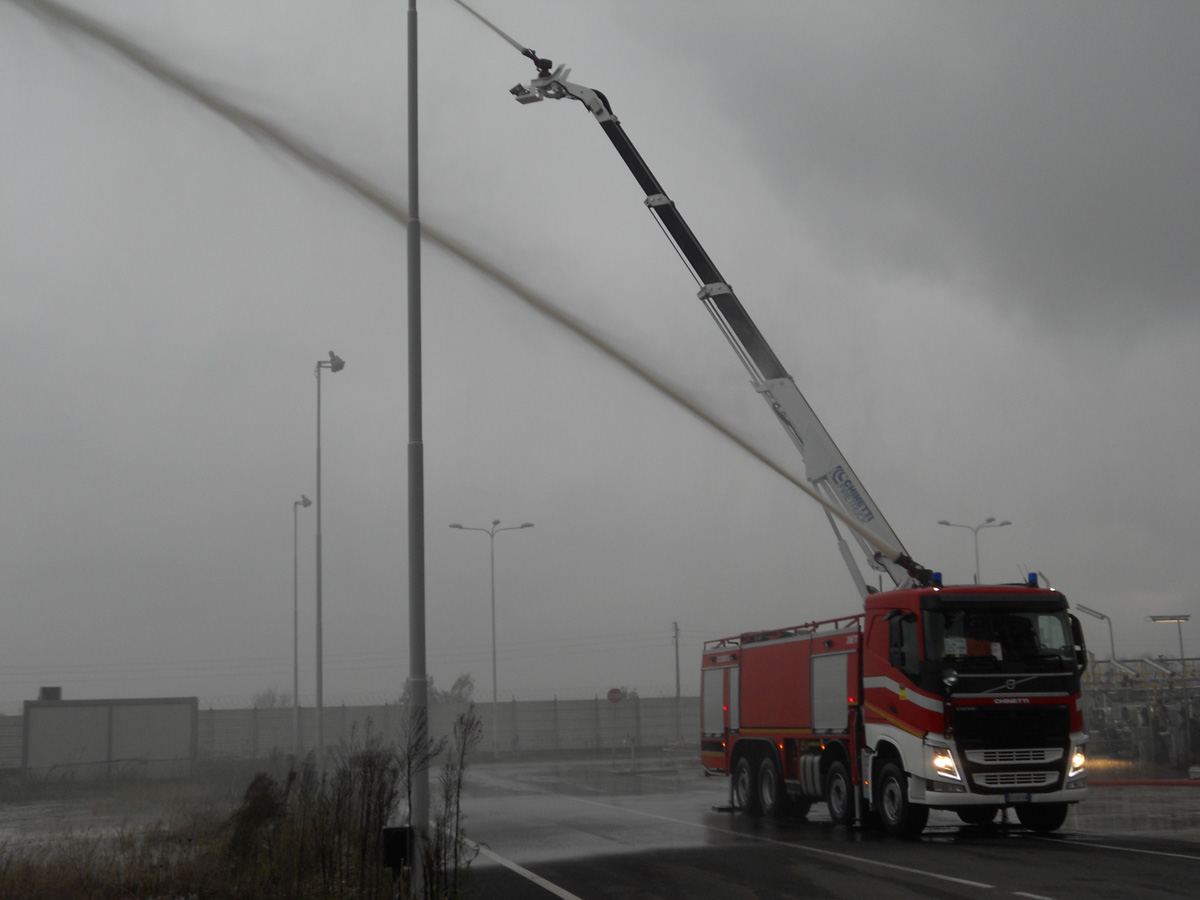

Water tower:

Model: Btower 200

Tipe: hydraulic, power take off operated, with 24Vcc emergency back-up pump.

Max. working height: 20 m

Max. outreach: 10 m

Monitor: Akron StreamMaster II - 2900 pM - Wireless control system.

Foam mixing system: CHINETTI -  Balanced pressure type with foam injection on each delivery and individual foam mixing ratio control for each outlet, from 0 to 6% - Can work indipendently using water from open source or from hydrants.

Bodyworks: Stainless steel frame with anodized light alloy panelling - nos.3 lockers on each side for equipment storage - side foldable foosteps.

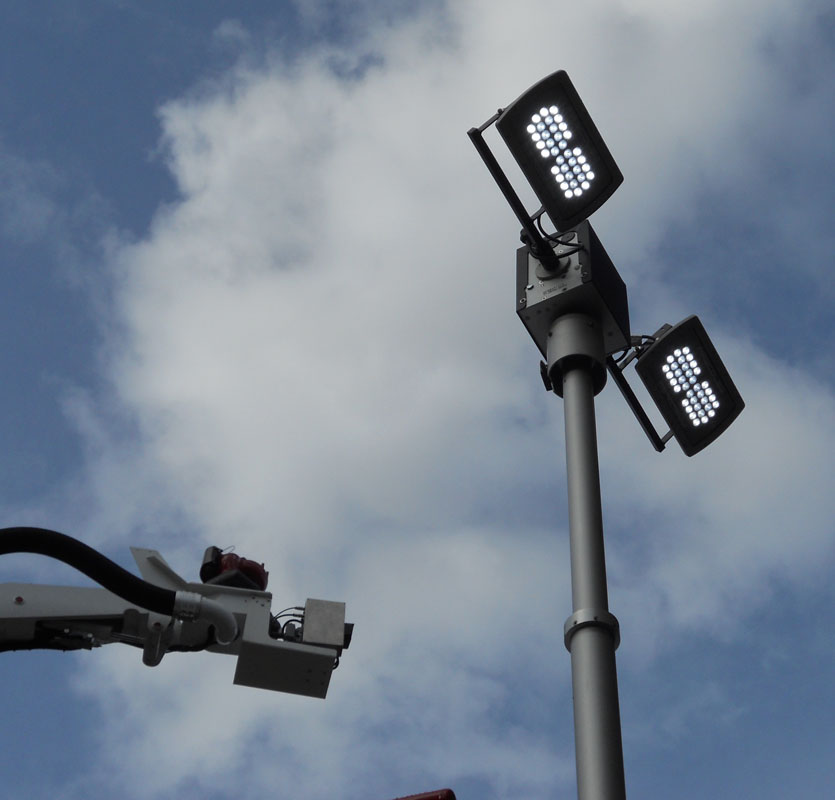

Light mast: Telescopic - 2 x 100W LED lights power supplied from chassis 24Vcc electric system or from auxiliary generator - max height from ground: 6m.

Ref #: 6779
