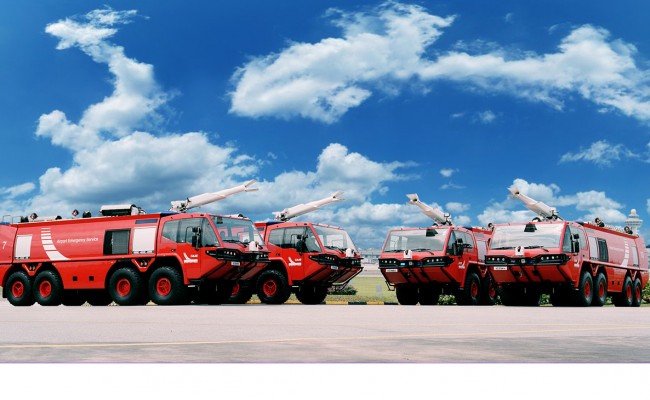

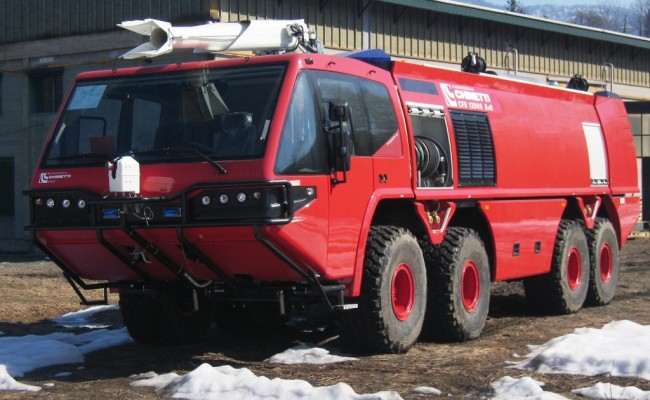

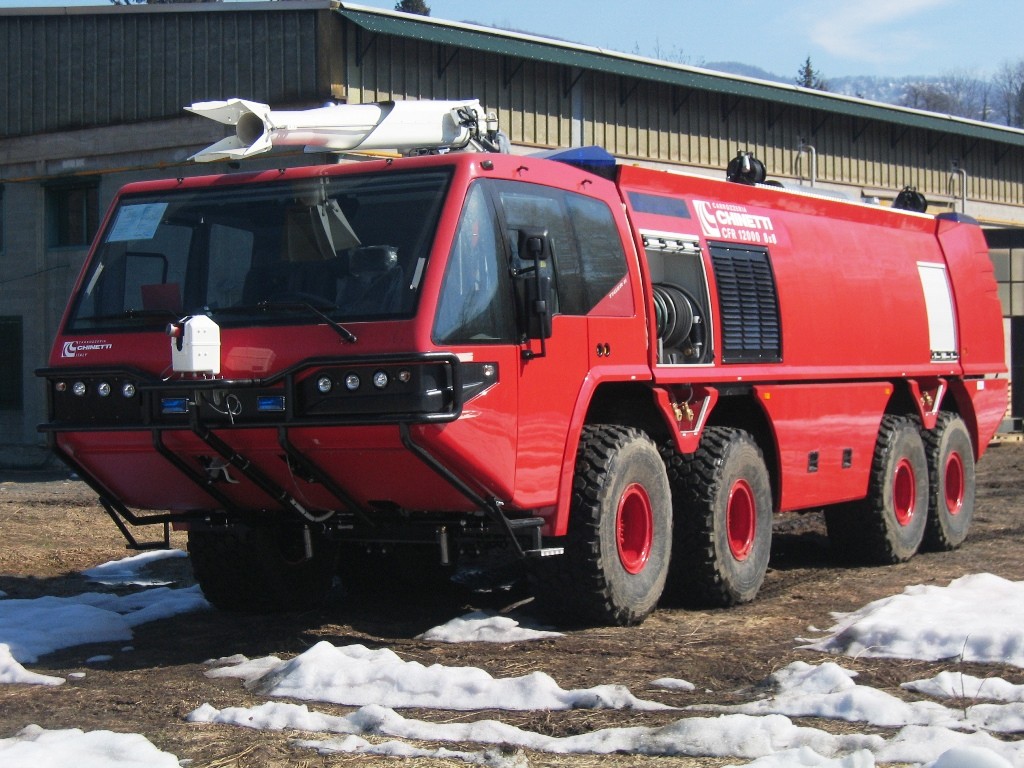

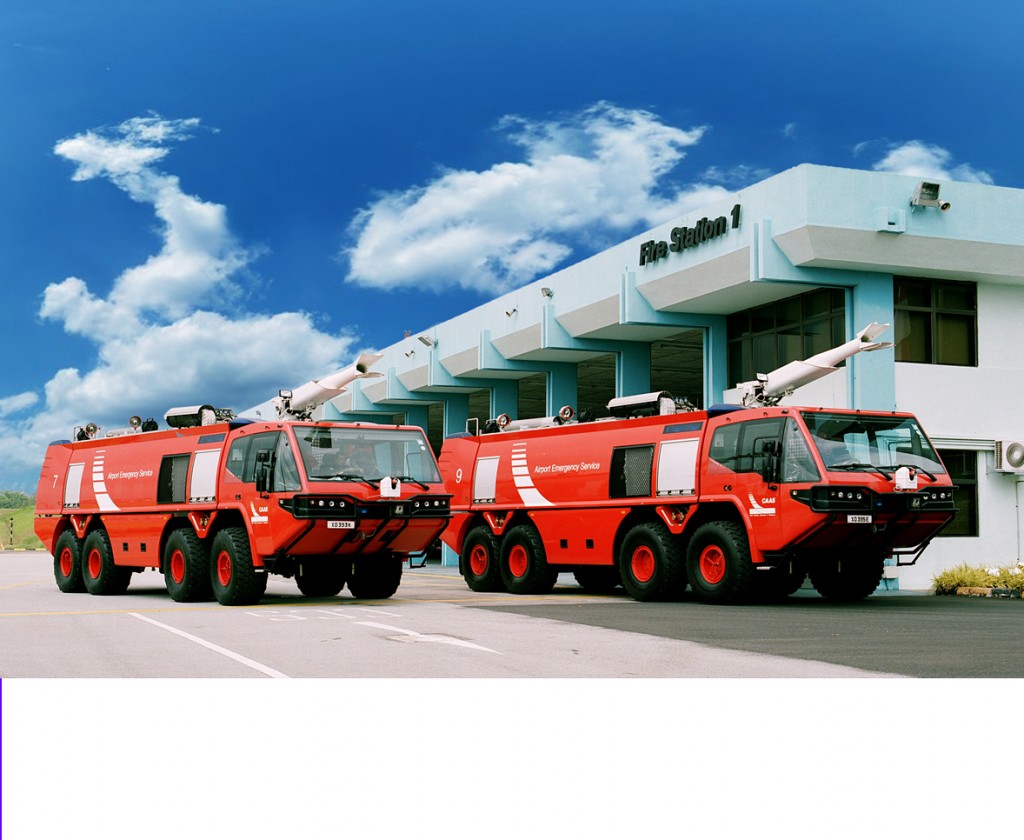

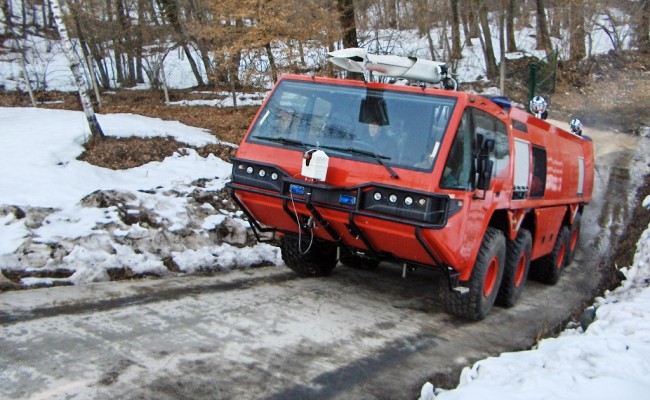

Category: Mayor Airport Crash Tender Vehicle

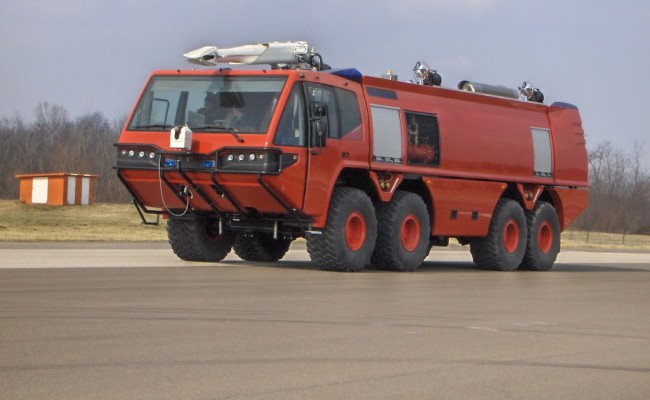

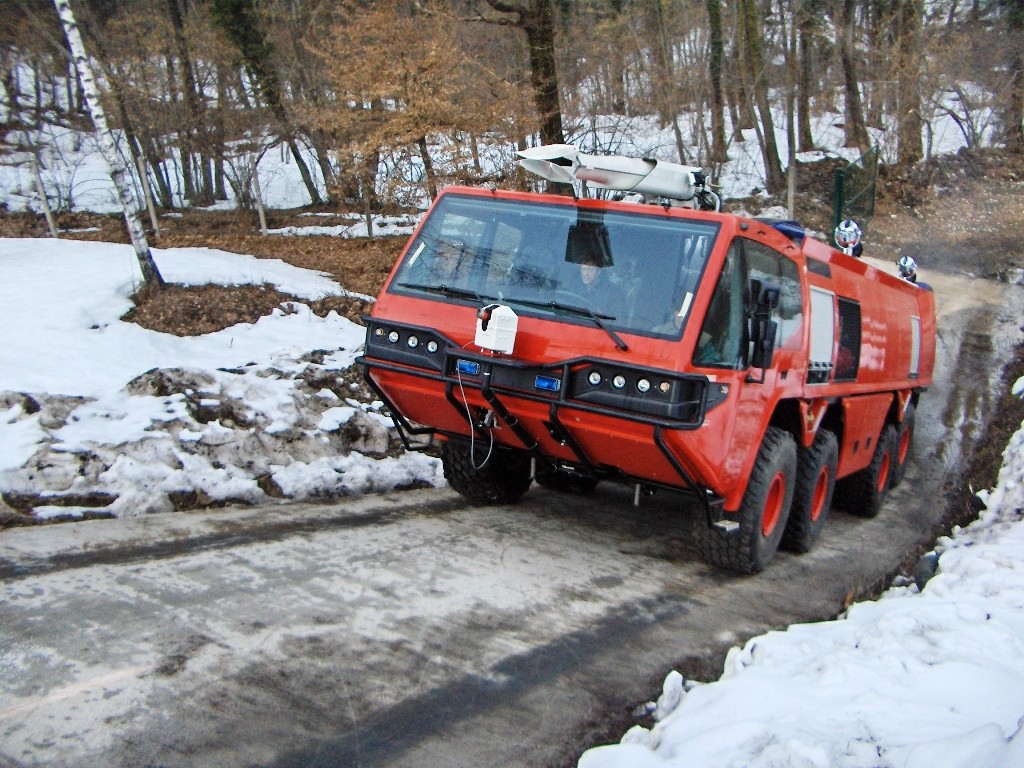

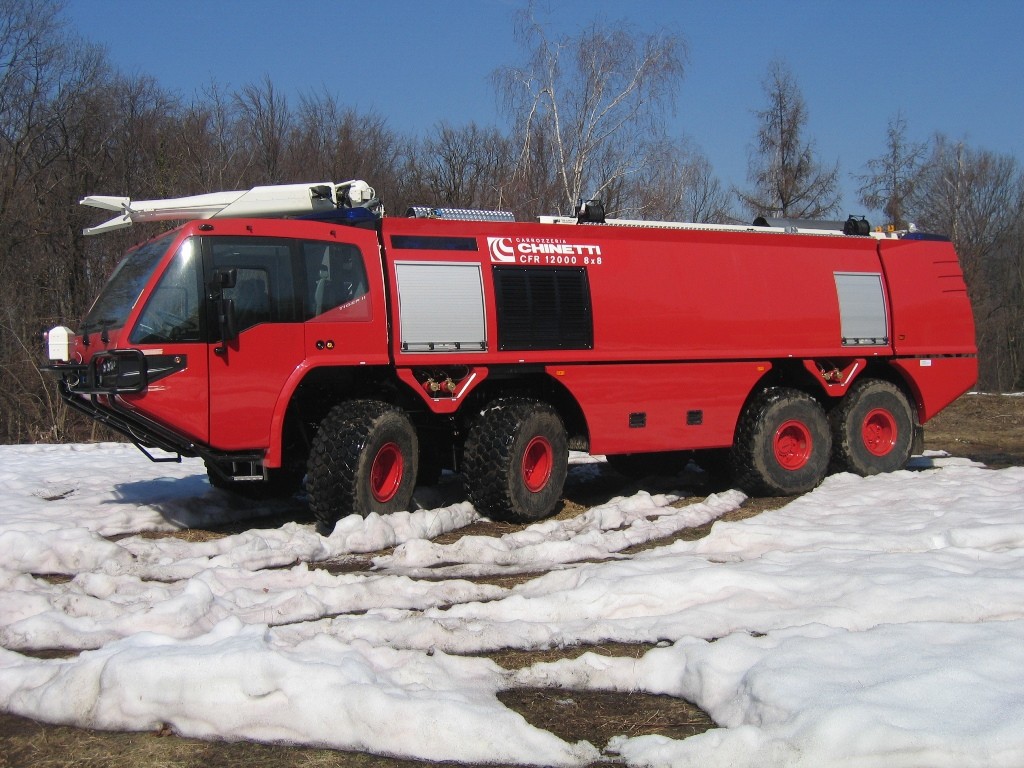

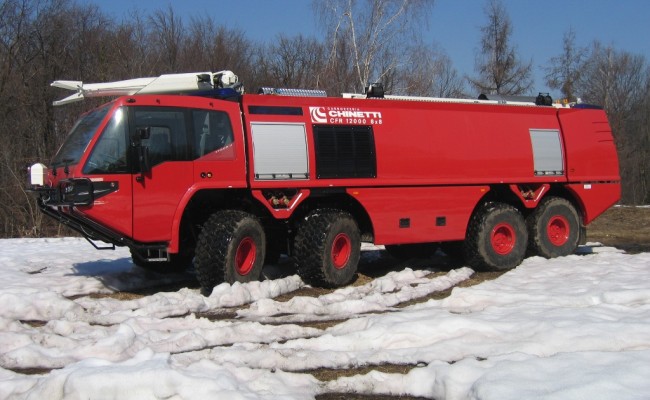

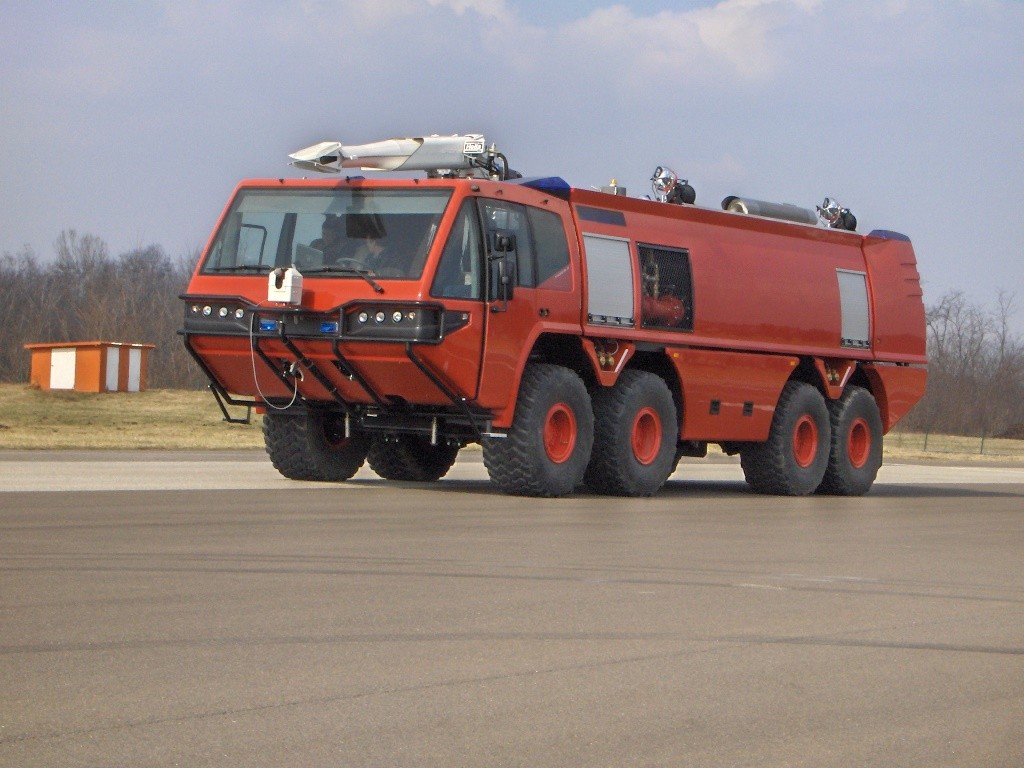

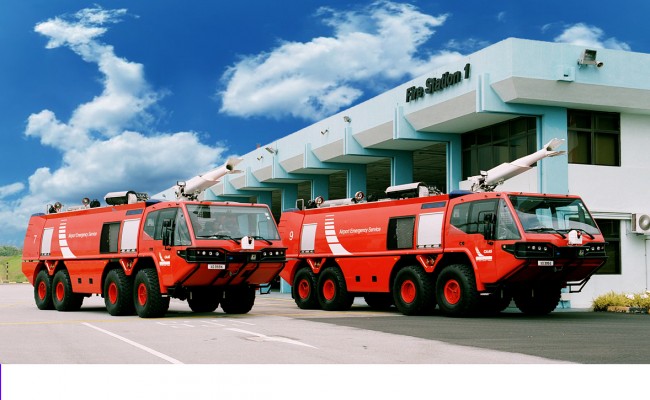

Model: CFR 12'000 8x8
Chassis: Fresia F800 8x8 - Engine IVECO Vector V8 1052 Hp - Automatic gearbox with torque converter Allison 6 gears + Reverse - GVWR: 48'000 kg
Cabin: 4 seats (all seats with SCBA holders integrated in the backrest), made by fiberglass.
Acceleration 0-80 km/h: < 24"
Top speed: >115 km/h
Gradeability: 50%
Side tilting angle (static):> 30°
Water tank: 12'000 lt - GRP
Foam tank: 1'200 lt - GRP
Bodywork: Modular type, completely made by fiberglass, rear tilting engine cover.
Water pump: GODIVA GVB10000 - 10'000 lpm @ 10 bar - Driven by independent engine model IVECO Cursor C13 (500 Hp @ 1900 rpm)

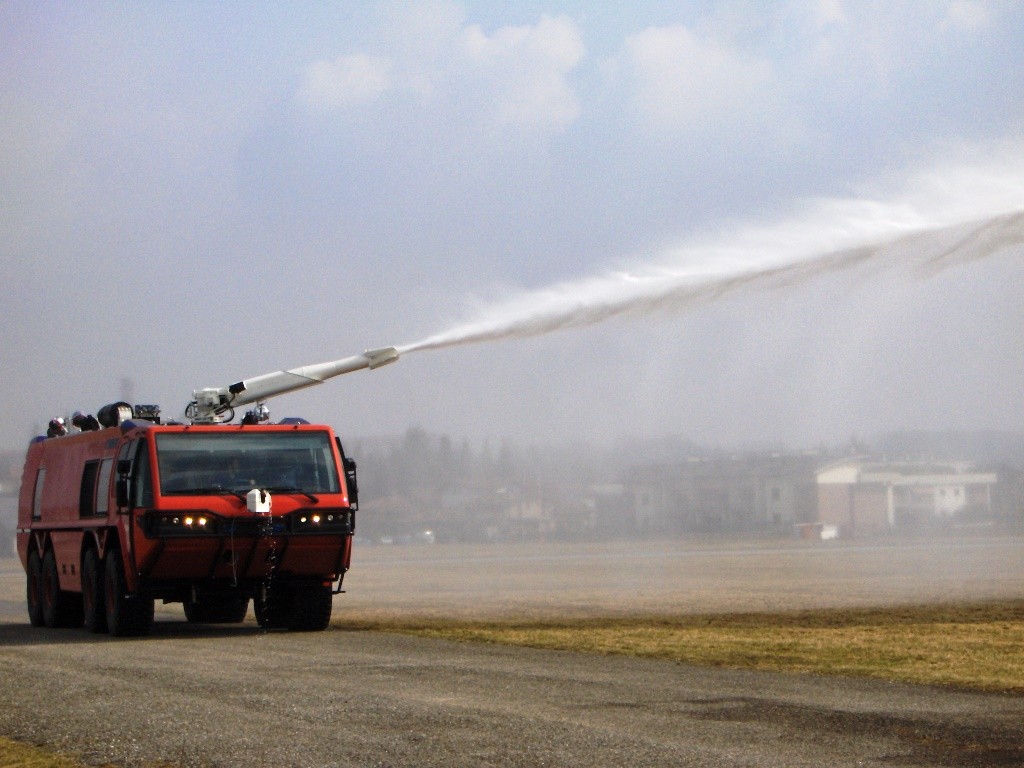

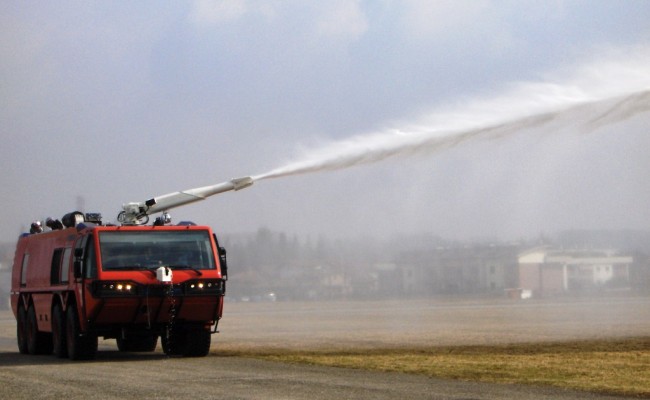

Main Turret: FOX-VPS - 6'000 / 3'000 lpm @ 12 bar
Bumper Monitor: ALCO EL570 - 1200 lpm @ 7 bar
Foam mixing system: "Around the Pump" automatic - CHINETTI (foam mixing ratio adjustable from 0 to 6%)
Dry Chemical Powder system: 250 kg - n.1 DCP hose reel 1"x20mt
Equipment: As per ICAO or on Customer's request
Ref #: 6753
