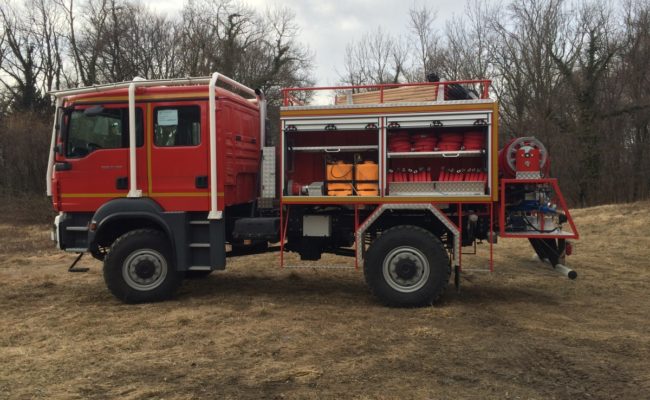

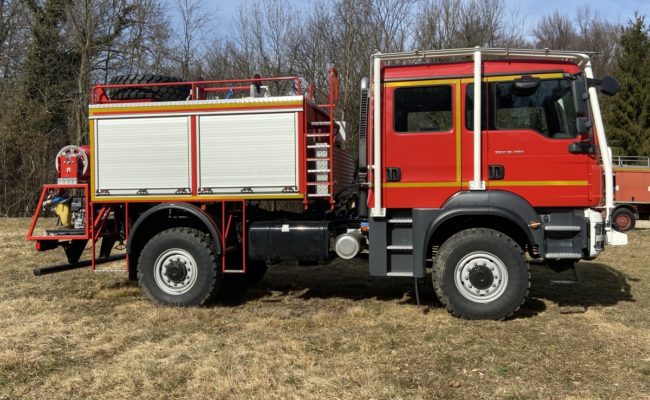

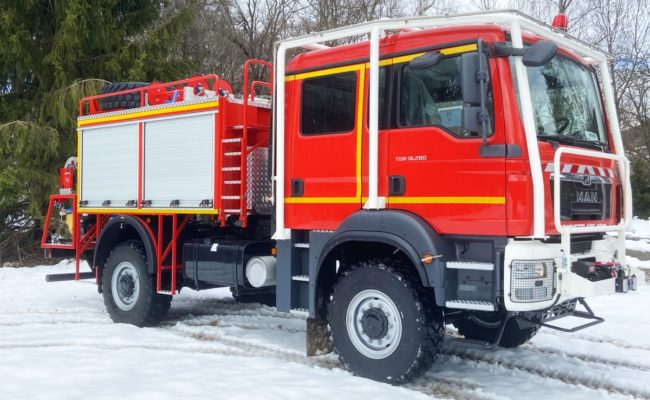

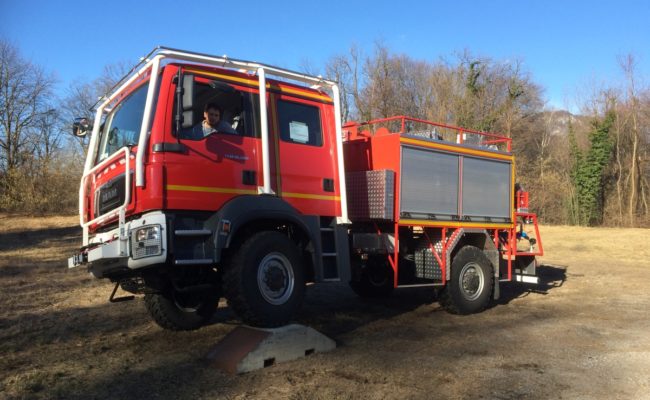

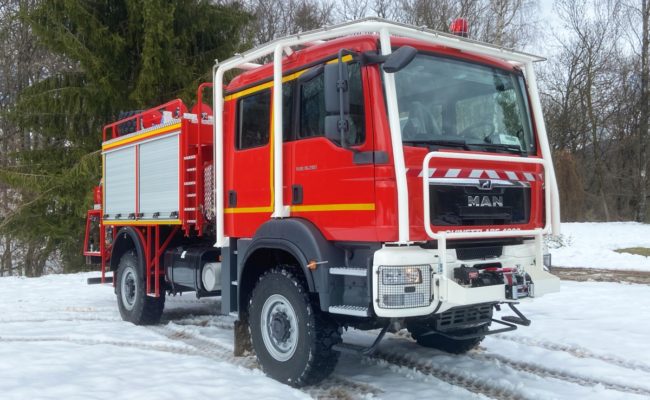

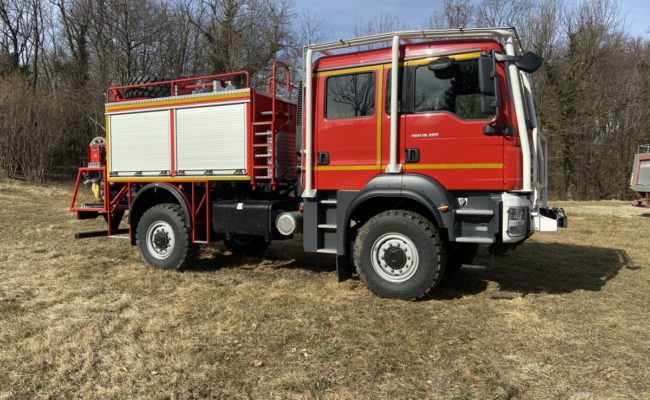

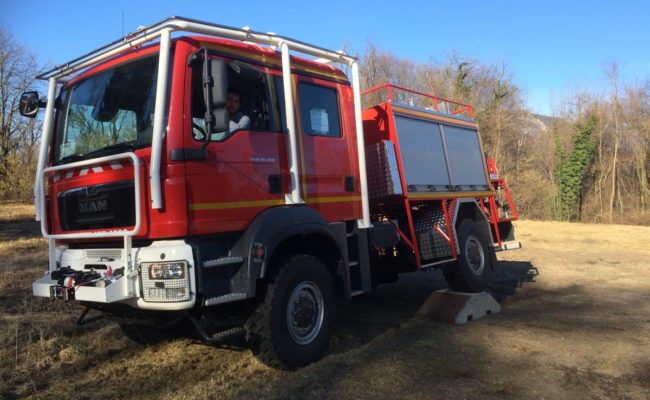

Category:   Civil Protection / Forestry fire truck

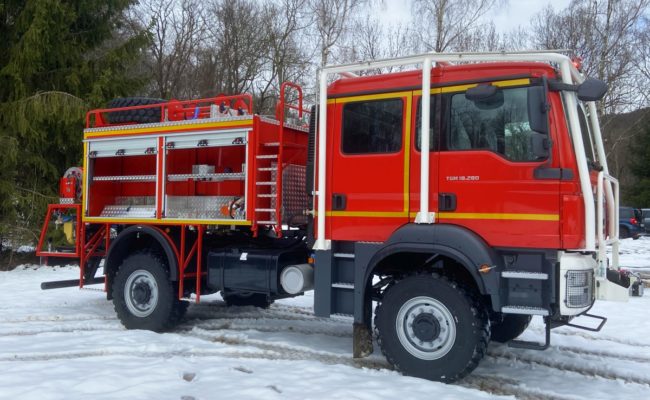

Model: ABF 4000 4x4

Chassis: MAN TGM 18.280 4x4 - Diesel Engine 280 Hp - Manual gear-box 9 speed + reverse - Front, rear and center differentials locking - Front and rear single tires 365/80 R20 Off road - GVW: 18'000kg

Cabin: 4 doors, 6 seats - Air conditioning - External protective steel roll bar.

Water tank: 4000 lt - Stainless steel AISI 316 L

Body: Made from a welded steel profiles frame (available on request also a stainless steel frame option) with light alloy panels. Two lockers on each side for equipment storage, closed by anodizes light alloy roller shutters. Elastic mounting of body and tank assembly suitable for very heavy off-road driving conditions.

Water pump: Centrifugal water pump,  2'000 lpm  @ 15 bar  - Bronze body and impeller, stainless steel shaft - Engine driven through power take off. Liquid ring type priming pump, automatic. Nos.2 rear pressure water outlets.

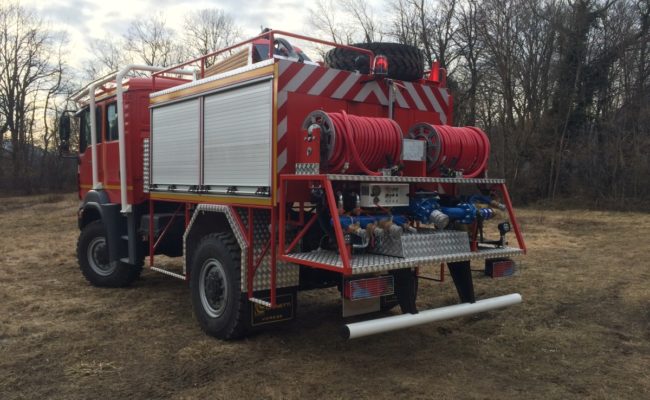

Hose reels: Nos.2  -  Ø1" x 60 m - Pistol grip type nozzle, selectable flow rate - Manual rewinding by crank lever with brake in every position.

Other featurs: Cabin, body and tires self-protection through dedicate electric auxiliary water pump, using a reserve capacity of the main water tank.

Optionals, on request:

  • Front winch, 24V operated, 5400 kg pulling force.
  • Breathable air system in the drive cabin.

Ancillary equipment: on request.

Ref #: 7350
