Category: Fire Fighting Vehicle for Industries, Foam tender - Large Volume Pumper

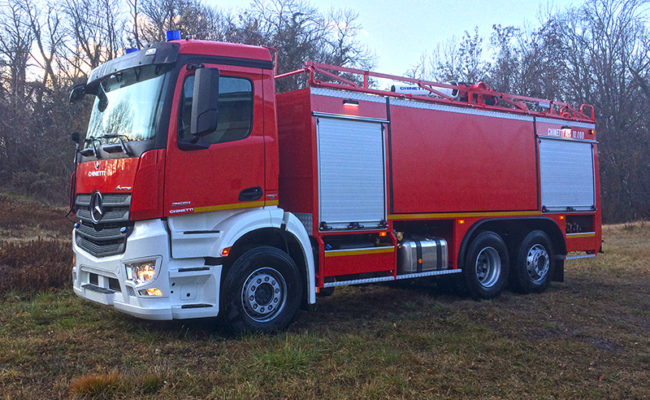

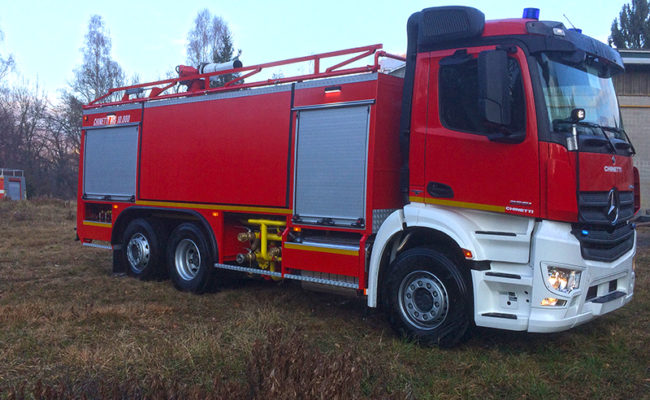

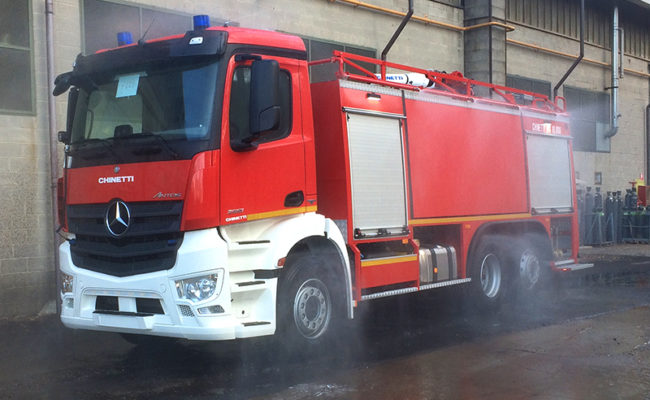

Model: CHINETTI AIS 10'000

Chassis: MERCEDES-BENZ ANTOS 2551L 6x2 - 510 Hp - EURO 6 - Automated gear-box 12 speed + 4 reverse - Trailed, liftable and steering 3rd axle - Pneumatic rear suspensions - G.V.W.R 26 t.

Cabin: 2 doors, 2 seats. (Seats can be provided with SCBA holders integrated into the backrest)

Foam tank: 10'000 lt capacity, made by polypropylene, lifetime warrantied against corrosion.

Water Pump: WATEROUS CRU-1 - 13'000 lpm  @ 10 bar (water supplied by hydrants at min. 4 bar). Bronze body and impeller, stainless steel shaft. Water pump can be engaged / disengaged either from cabin control panel either from rear control panel.

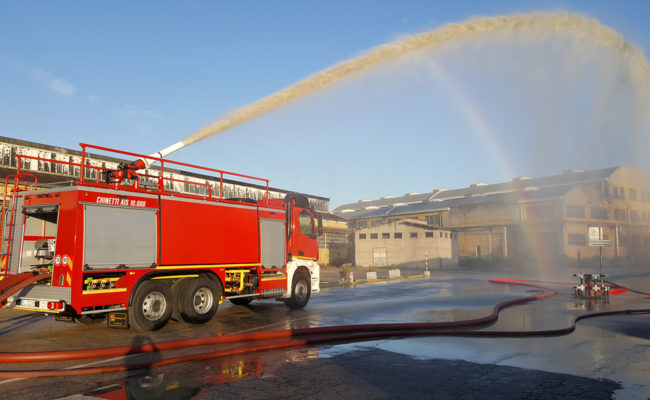

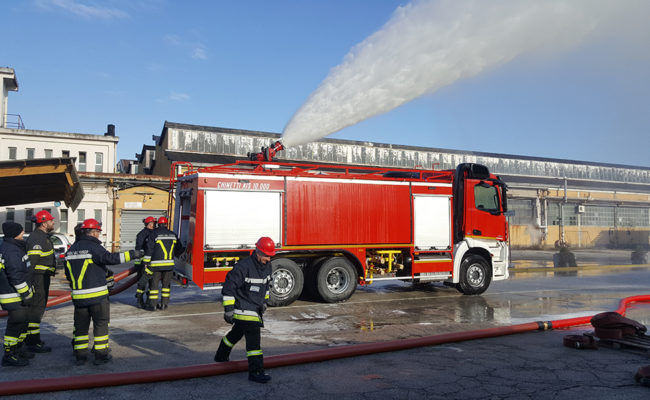

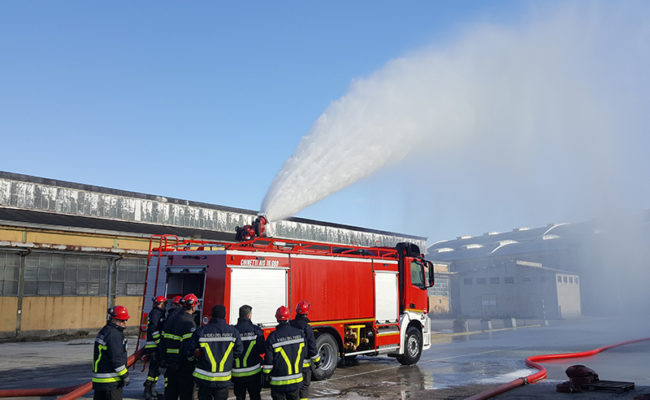

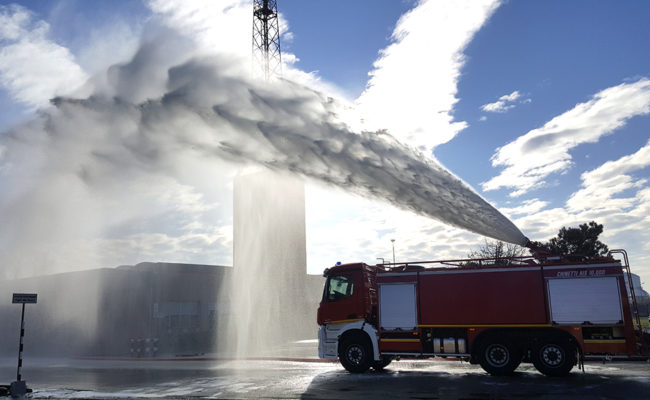

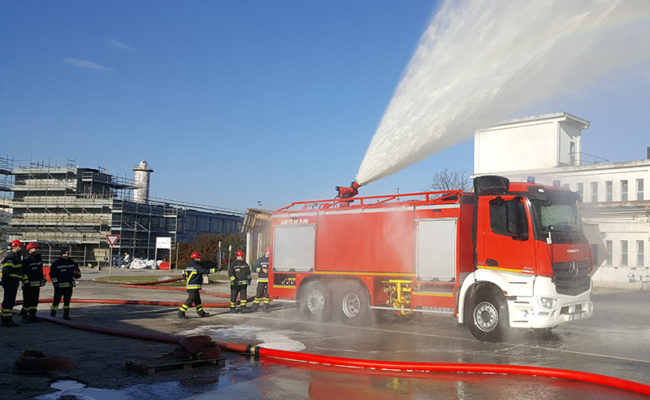

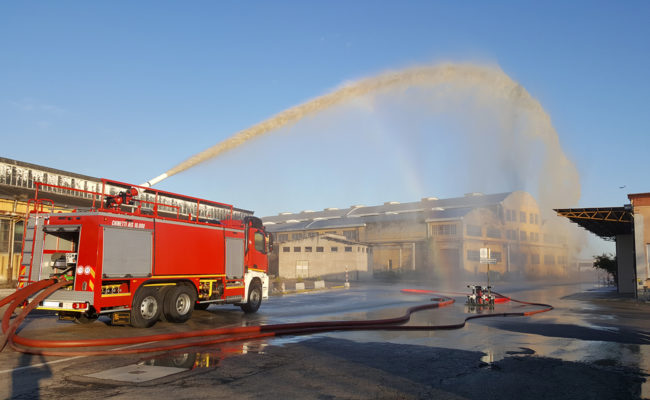

Roof Monitor: Rear mounted, mod. AKRON AEROMASTER 12 - Max. flow rate: 12'000 lpm @ 10 bar, with foam tube as optional, water throwing distance up to 125 m. - Remote controlled by wireless control unit and by portable dashboard with 5m lead at the pump control panel - Autostow feature provided.

Foam mixing system: automatic, balance pressure type with foam proportioning and injection at each single outlet, CHINETTI made - It can work using foam from vehicle tank or from external source and it works independently with water supplied from hydrants or atmospheric external source.

Foam Pump: ALBANY 650 l/min @ 18 bar - Bronze - Volumetric, self-priming, rotary gears type. - Engagement from cabin and rear control panel - It can work together or independently from the main water pump.

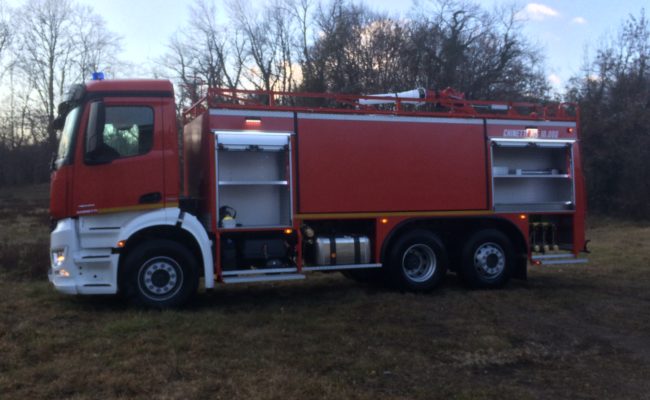

Bodywork: Stainless steel frame with light alloy paneling - Two side lockers on each side for rescue equipment closed with anodized roller shutters - LED scene lights (one light above each locker and one LED profile integrated in each roller shutter drip channel) - N.1 front LED search light.



Other Features:

  • Reverse camera
  • Side roof rail protections, automatically elevated when access ladder is lowered.
  • Tires and body water self-protection system through dedicated nozzles.
  • Quick start system including automatic battery charger, auxiliary compressor and self-ejecting socket for 230V power supply.
  • Multifunctional control display at the cabin control panel and at the pump control panel.

Fire and Rescue Equipment: On request.

Ref #: 7113
