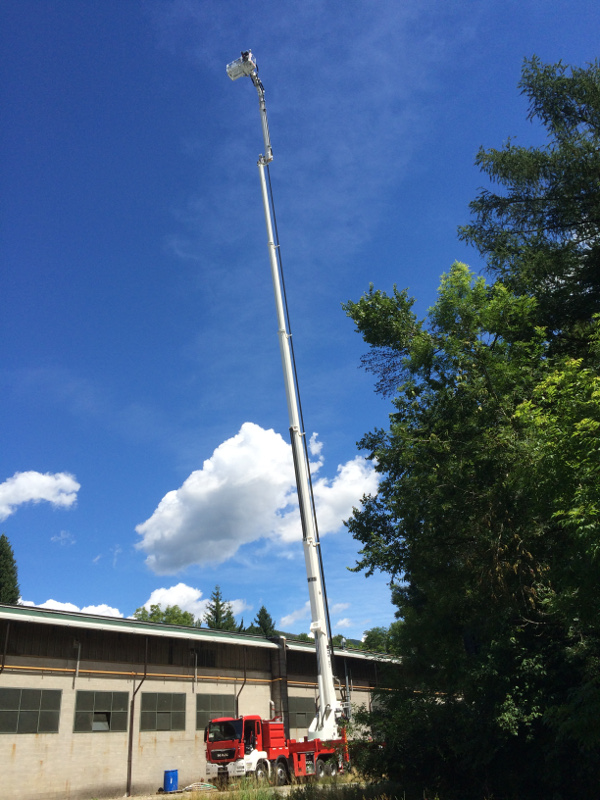

AIS 30/5/TEL62

Category: Fire Fighting Aerial Platform


Chassis: MAN TGS 41.440 8x4 - 440 Hp - GVWR: 41'000 kg - 16 speeds manual gear box.

Cabin: 2 doors - 2 seats

Aerial Platform (Manufacturer: CTE):

Max. Working height: 62,0 m

Rescue ladder at the boom side: no (available ad optional)

Wireless remote control: yes

Back-up system: by independent engine.

Water tank: 3'000 lt from stainless steel AISI 316L (Polypropylene or GRP available as well)

Foam tank: 500 lt, integrated into the water tank.62 mt platform - elevated

Water pump: WATEROUS CMU - 8'500 lt/min @ 12 bar

Foam mixing system: "Around the Pump", electronically controlled, mod. FRC FSB 240.

Basket monitor: AKRON Stream Master, 950 - 3800 l/min  @ 5.5 bar

Side lockers: 2 on each side

S/N: 6874
