Category: Industry - Water & Foam

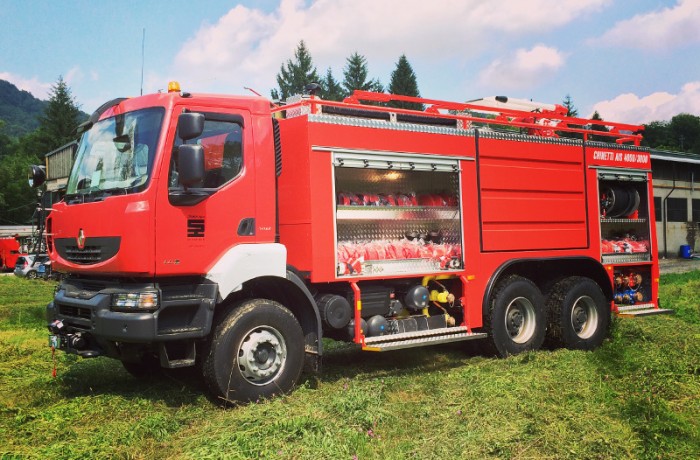

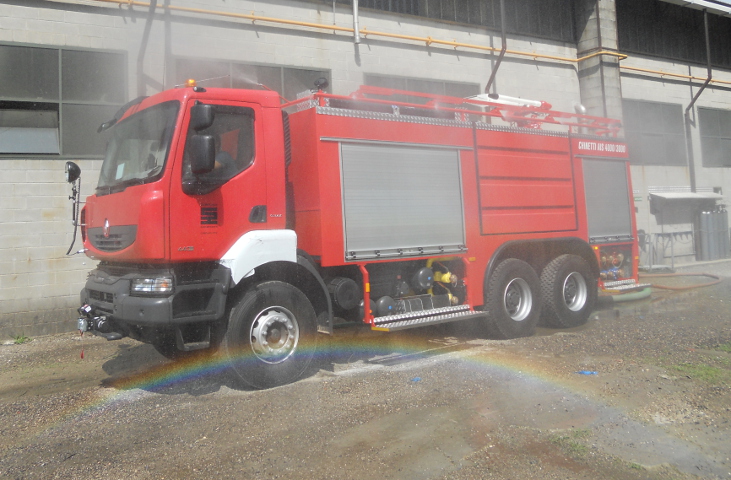

Model: AIS 4000/3000
Chassis: RENAULT KERAX 440.34 6x4 - 440 Hp - Manual gearbox.
Cabin: 2 doors - 3 seats
Water tank: 4'000 lt - Reinforced Fiber Glass (stainless steel AISI 316L or Polypropylene version available as well)
Foam tank: 3'000 lt - Reinforced Fiber Glass (stainless steel AISI 316L or Polypropylene version available as well)
Water pump: CHINETTI 2T-5012 - 4'000 lpm @ 10 bar - bronze
Roof Monitor: CHINETTI MCO5 DC - dual nozzle (water / foam), remote controlled from the pump control panel.
Water nozzle: 3'000 lpm @ 10 bar - Throw 80 m
Foam nozzle: 2'000 lpm @ 10 bar - Throw 70 m, fog / spray deflector, air aspirated branchpipe.
Foam mixing system: balanced pressure type, centralized injection, with foam pump PSCH 400 da 400 lpm @ 18 bar.
Hose reels: Nos.2 - Ø1"x 60 m - Manual rewinding.
Self protection: water curtain for cabin and bodywork.
Front winch: electric operated 24Vcc - 3'600 kg - steel cable 30m.
Equipment: on request.
Ref #: 6876
