AIS 6000/1000/PWD500

  • 6621_20130327_286_DSCN6540_6621
  • 6621_AAFB FOTO

Category: Industry or Civil Defence - Multiprupose Fire Truck (Water / Foam / Dry Chemical Powder)

Model: AIS 6000/1000/PWD500

Chassis: Iveco Trakker AD190T38H 4x2 - 380 Hp - Manual gearbox 16 speed + 2 Reverse.

Cabin: 4 doors - 6 seats - Rear seats with SCBA holders integrated into the backrest.

Water tank: 6'000 lt - AISI 316L (Polypropylene or GRP available as well)

Foam tank: 1'000 lt - AISI 316L (Polypropylene or GRP available as well)

Dry chemical powder system: 500 kg - nos.2 hose reels Ø1" x 40 m.

Water pump: CHINETTI 2T-5012 - 5'000 lpm  @ 12 bar - bronze

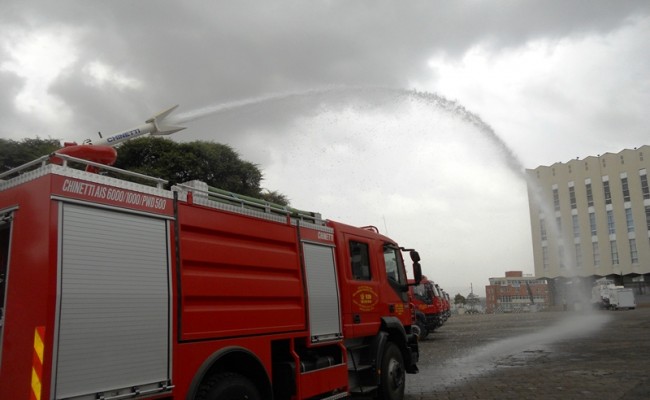

Roof Monitor: CHINETTI MCO5 - 4'500 @ 10 bar, remote controlled from pump control panel or monitor control panel on the vehicle roof. Wireless remote controlled option available as well.

Foam mixing system: "Around the pump" - CHINETTI VS 2-60 - mixing ratio adjustable from 0 to 6% .

Water and foam hose reels: Nos.2 - Ø1" x 50 m - manual rewinding.

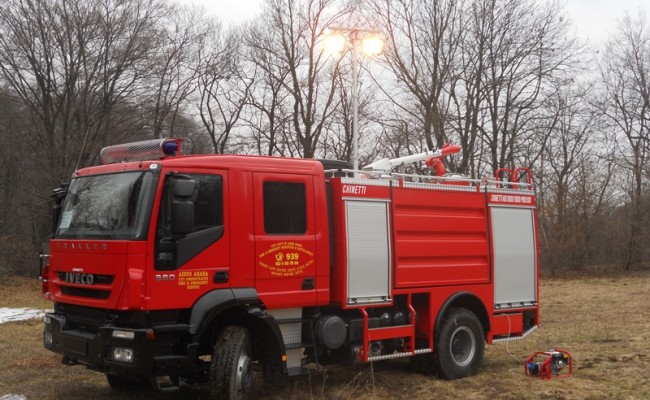

Light mast: N.1 telescopic light mast, pneumatic extension, max. extended height from the ground 6.5m, nos.2 halogen lights 230V - 1000W / each power supplied by an auxiliary generator 2.8 kVA - 230V

Equipments: on request.

Ref #: 6621
