Category: Fire Fighting Aerial Platform

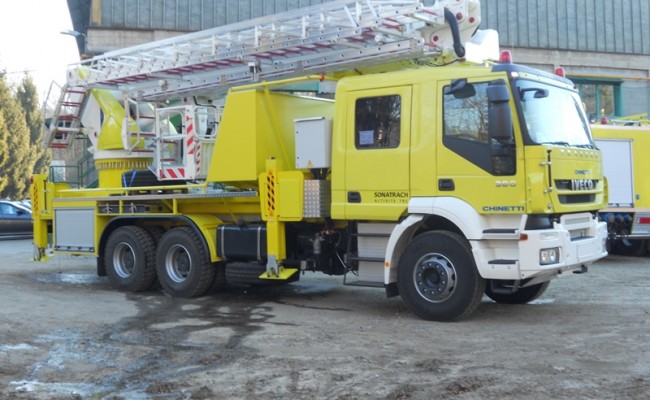

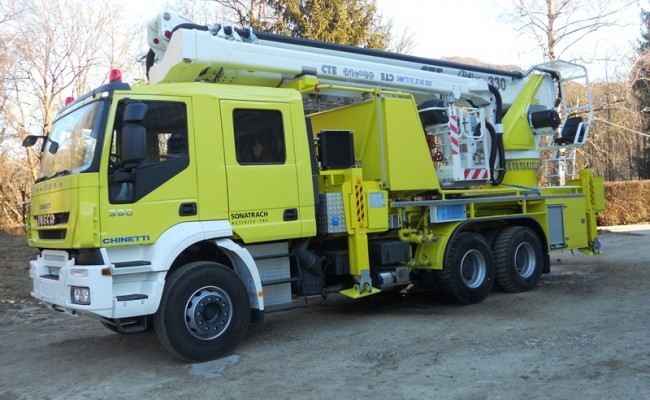

MODEL: AIS20/TEL32
Chassis: IVECO TRAKKER AD380T38H 6x4 - 380 Hp - GVWR: 33'000 kg - Manual gearbox 16 speed + 2 reverse.
Cabin: Extended crew cabin, 4 doors - 6 seats - rear seats with SCBA holders integrated into the backrest.
Aerial platform:
Max. Working heght: 32,0 m
Max. outreach: 22 m
Downreach: -5,0 m
Cage max. load: 400 kg
Rescue ladder: provided
Foam tank: 2'000 lt - Polypropylene (stainless steel AISI 316L or GRP option available as well).
Foam mixing system: with foam pump model PSCH 500 (500 lt/min @ 16 bar) and centrilized foam injection - selectable foam mixing ratio from 0 to 6%.

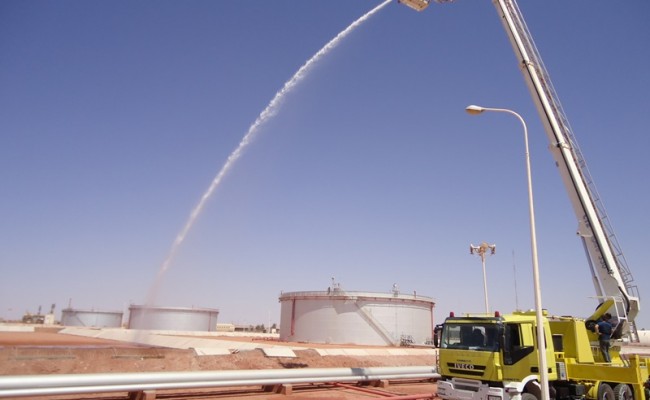

Basket monitor: AKRON Stream Master, 950 - 3800 l/min @ 5.5 bar (Available both in manual control or electric remote control version).
Side lockers: 1 on each side, with anodized roller shutter, for equipment storage.
S/N: 6904
